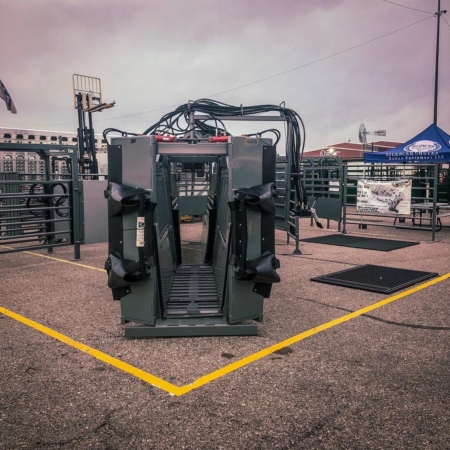

SILENCER’s Heavy Duty Model is fully sheeted, full-opening head and taildoor, main frame 4x2x3/16 inch rectangular tubing, 2×2 sq., 1/4 inch wall sidegate, 1/4 inch floor for increased life of chute, reinforced construction, modular construction for superior maintenance, replaceable heavy-duty drop bars, 10 quick-change, relube roller bearings–top connector and lower headdoor connector, oil-based polyethylene contact points, urethane bearings, standard 3 spool hydraulic valves, 5–4×2 cylinders, 1–2×6 cylinder, fitted hoses, 30 ft. extension hose, chute primed before electrostatically painted.
The SILENCER Heavy Duty Model is designed for increased chute life with reinforced construction, modular construction for superior maintenance, and replaceable heavy duty drop bars.
Each Chute comes with a One Year Warranty.
Specifications
- Weight without pump: 2600 lbs.
- SILENCER Electric Pump Weight: 235 lbs.
- Overall Height: 93″
- Head & Taildoor Height: 67 1/2″
- Inside Chute Height: 67 1/2″
- Overall Outside Length: 102″
- Overall Inside Length: 91″
- Total Width Doors Open: 67″
- Total Width Doors Closed: 59″ (including hydraulic levers)
Additional Options
Extended Heavy Duty Model
Rubber-Belted Louvers on Sidegates
Side Exit – Left and/or Right Side
Rear Walk-Through Doors (26 inches)
Additional Neck Access per Sidegate
Platform or Overhead Electronic Scales
Yoke, Carry-All, Overhead, or 4-Post Carrier
Power Supply Options:
5 HP Electric Hydraulic Pump
Baldor Industrial Motor – 1 phase or 3 phase with Vickers vane pump and pressure relief valve.
Gas Powered HPV 550 Hydraulic Pump
Honda 6.5 HP engine hydraulic pump, two spool valve with pressure relief, reservoir, oil filter, quick couplers (female).
